Upgraded Mercedes-Benz W639 Seat Trim Fastener

Upgraded Mercedes-Benz W639 Seat Trim Fastener

The Permanent Fix for Brittle OEM Clips If you own a W639 Viano or Vito, you already know the frustration of the factory seat trim clips. The original OEM fasteners are notoriously brittle and prone to snapping off at the locking stem, leaving your seat trim loose or rattling.

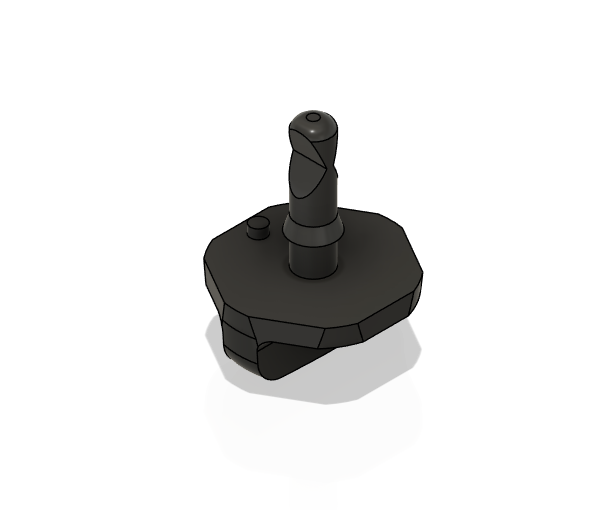

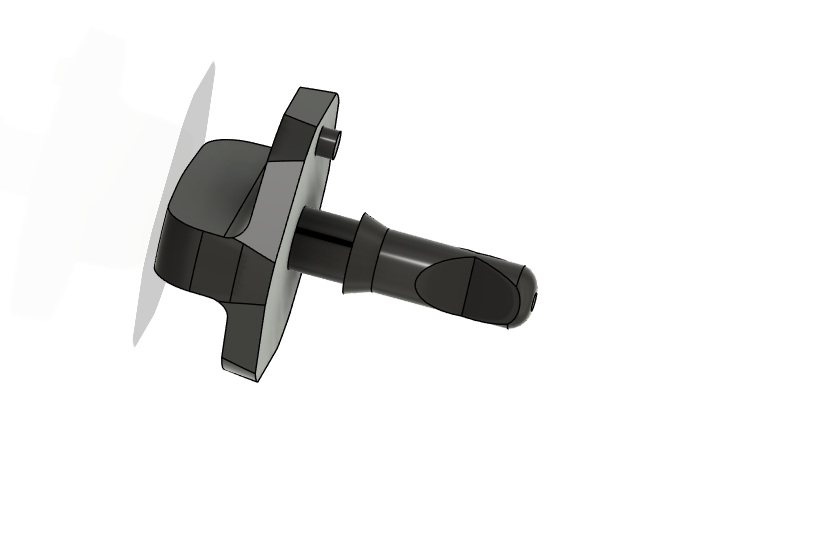

This upgraded B3DS replacement clip is engineered from the ground up to solve that exact problem. We have completely rethought the geometry, replacing the standard round base with our bespoke 3D-printed signature hexagonal profile for maximum structural strength and a modern, upgraded look.

Key Features:

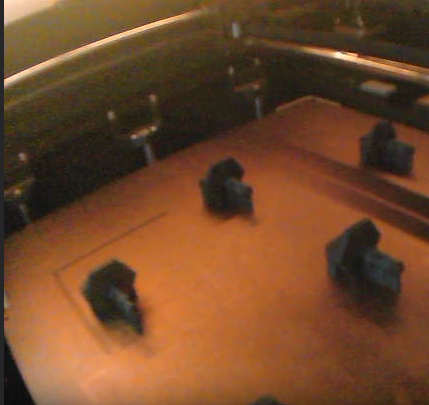

• The "Hex" Strength Advantage: Standard replacement clips are manufactured standing upright, which creates weak horizontal layers across the stem that easily snap. Our unique hexagonal base features a flat edge, allowing us to 3D print the clip laying completely flat. This aligns the internal structure—much like the grain in a piece of wood—straight down the length of the locking stem. The result is massive shear strength, meaning the retaining tabs will not snap under tension during installation or daily use.

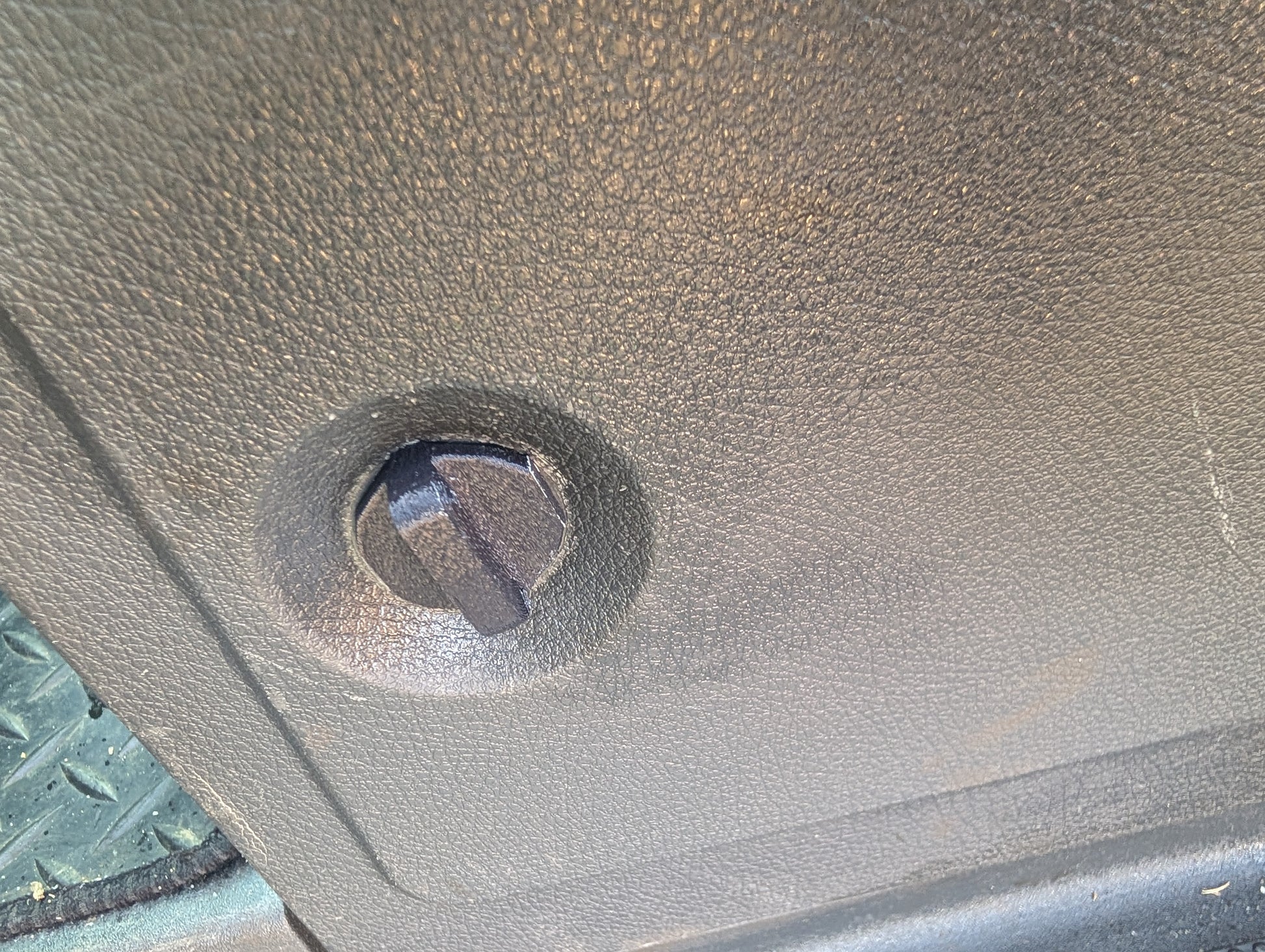

• Factory-Style Textured Finish: Because the cap remains visible once the trim is installed, aesthetics matter. We utilize a specialized texturing technique during the 3D printing process to give the visible face a premium, matte finish that closely mimics standard automotive interior plastics.

• Crafted from Engineering-Grade ASA: Not all plastics are created equal. If you have ever purchased a custom part that warped in a hot car or became brittle over time, it was likely made from standard hobby plastics. We exclusively manufacture these clips using Engineering-Grade ASA. This is a premium, automotive-tier material specifically chosen for its exceptional UV and heat resistance. It will easily survive the baking summer temperatures inside a closed van without softening or degrading.

• Exact Fit Geometry: Modeled to exact W639 seat frame tolerances for a secure, tight fit.

• UK Manufactured: Designed, tested, and 3D printed in-house at the B3DS workshop in Scotland.

Installation:

1. Remove any remaining debris from the broken original clip in the seat frame.

2. Carefully align the locating tab on the replacement clip with the corresponding channel on your seat trim, exactly like the factory OEM fastener.

3. Once aligned, insert and twist into place to securely lock the fastener.

Manufacturing Disclaimer: As these fasteners are individually 3D printed, you may notice minor cosmetic imperfections or slight variations in the surface finish. Please be assured that these are normal characteristics of the additive manufacturing process and have absolutely zero impact on the structural strength, fitment, or long-term durability of the clip.

Product Specifications:

• Compatibility: Mercedes-Benz W639 (Vito / Viano)

• Material: Engineering-Grade ASA (UV & Heat Resistant)

• Manufacturing Method: FDM 3D Printed

• Finish: Textured Matte Black

• Listing: Sold individually (Select quantity at checkout)

• OEM Part Cross-Reference: Direct upgraded replacement for Mercedes-Benz part number A63666600009.
